High-value-for-money motherboards, like the Intel B760 from Gigabyte, are the ideal solution for many people looking to save money for another more performance-impacting component. Let’s take a tour and get to know this motherboard!
Overview of Gigabyte B760M DS3H AX DDR4 Motherboard
Technical Specifications
- Supported Processors: 12th and 13th generation Intel processors, Pentium Gold, and Celeron.
- Chipset: Intel B760.
- Memory: 4 DDR4 slots, up to 128GB, supporting frequencies up to DDR4 5333 (OC).
- Audio: Realtek ALC897 audio codec.
- Supported LAN: Realtek RTL8125BG 2.5 Gigabit Ethernet.
- Supported WiFi: AMD/Intel/Realtek WIFI 6E with Bluetooth (specific WiFi version depends on the desired motherboard version).
- Expansion Slots: PCIe 4.0 x16 expansion slot, and two PCIe 3.0 x1.
- Storage: Four SATA III ports, and two PCIe 4.0 x4 M.2 ports (NVMe mode only).
- Form Factor: Micro AT.
Package Contents
The B760M DS3H AX DDR4 motherboard comes in a box that blends black and orange, in line with the brand identity of Gigabyte’s Ultra Durable product series. The package includes the following accessories: WiFi antenna, 2 SATA III cables, I/O shield, and a quick start guide.
Aesthetics of B760M DS3H AX DDR4

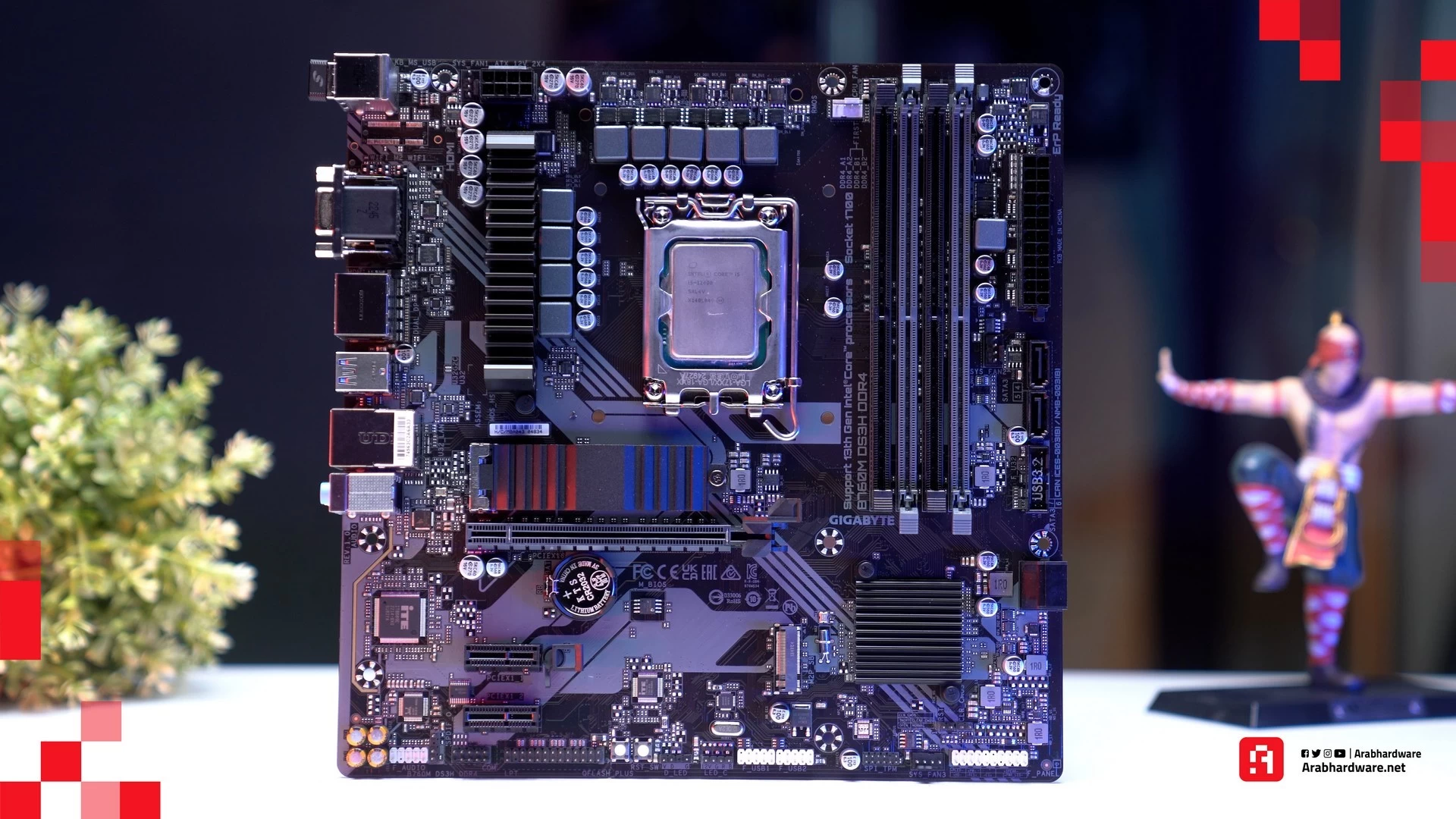

The B760M DS3H AX DDR4 motherboard has a plain look with a black PCB adorned with light grey decorations for contrast. As a budget-oriented board, it does not come with an integrated I/O shield design, nor even with built-in RGB LED accents. However, it does come with integrated RGB headers, which we will discuss later.
VRM and Memory Support

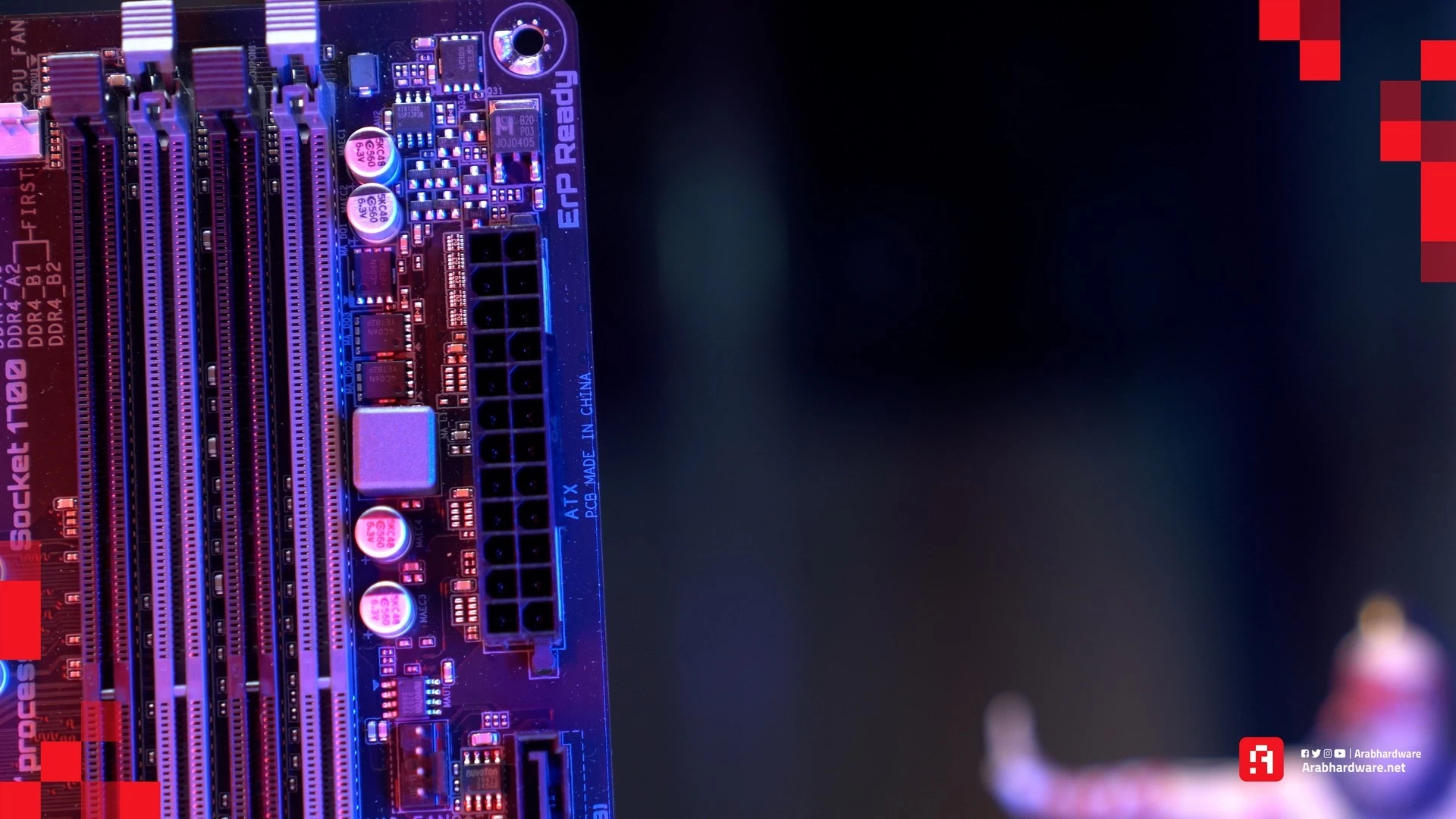

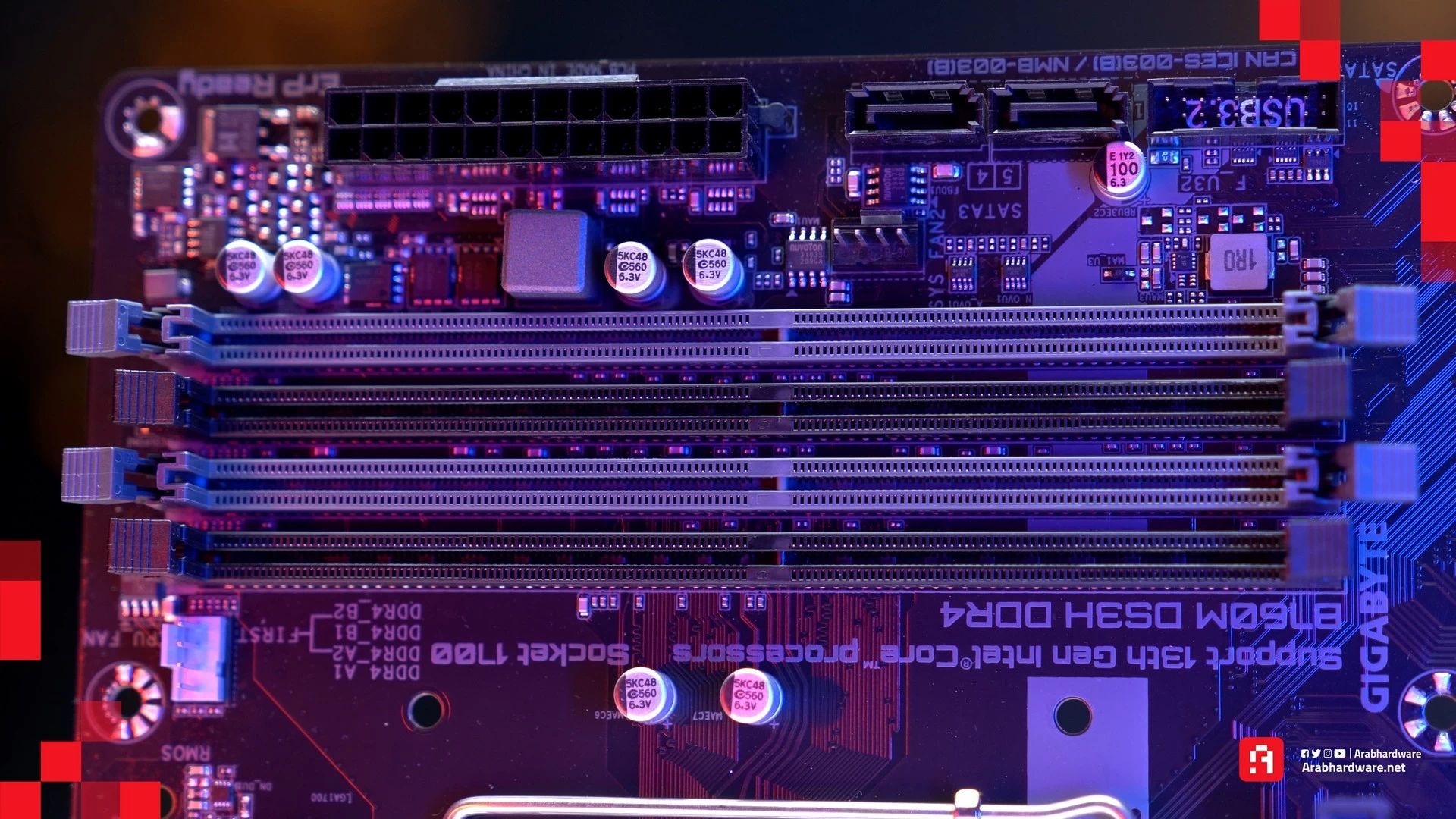

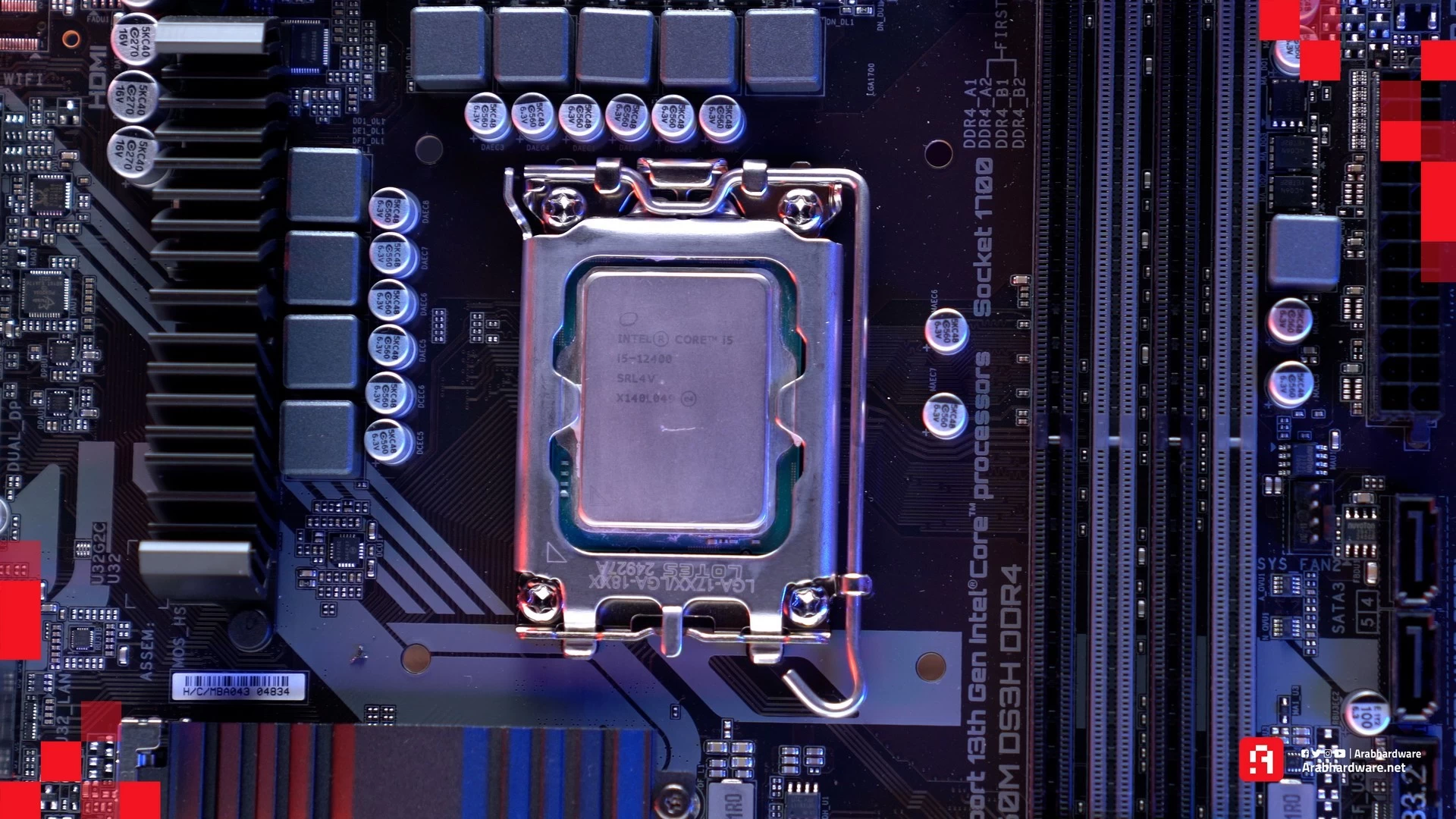

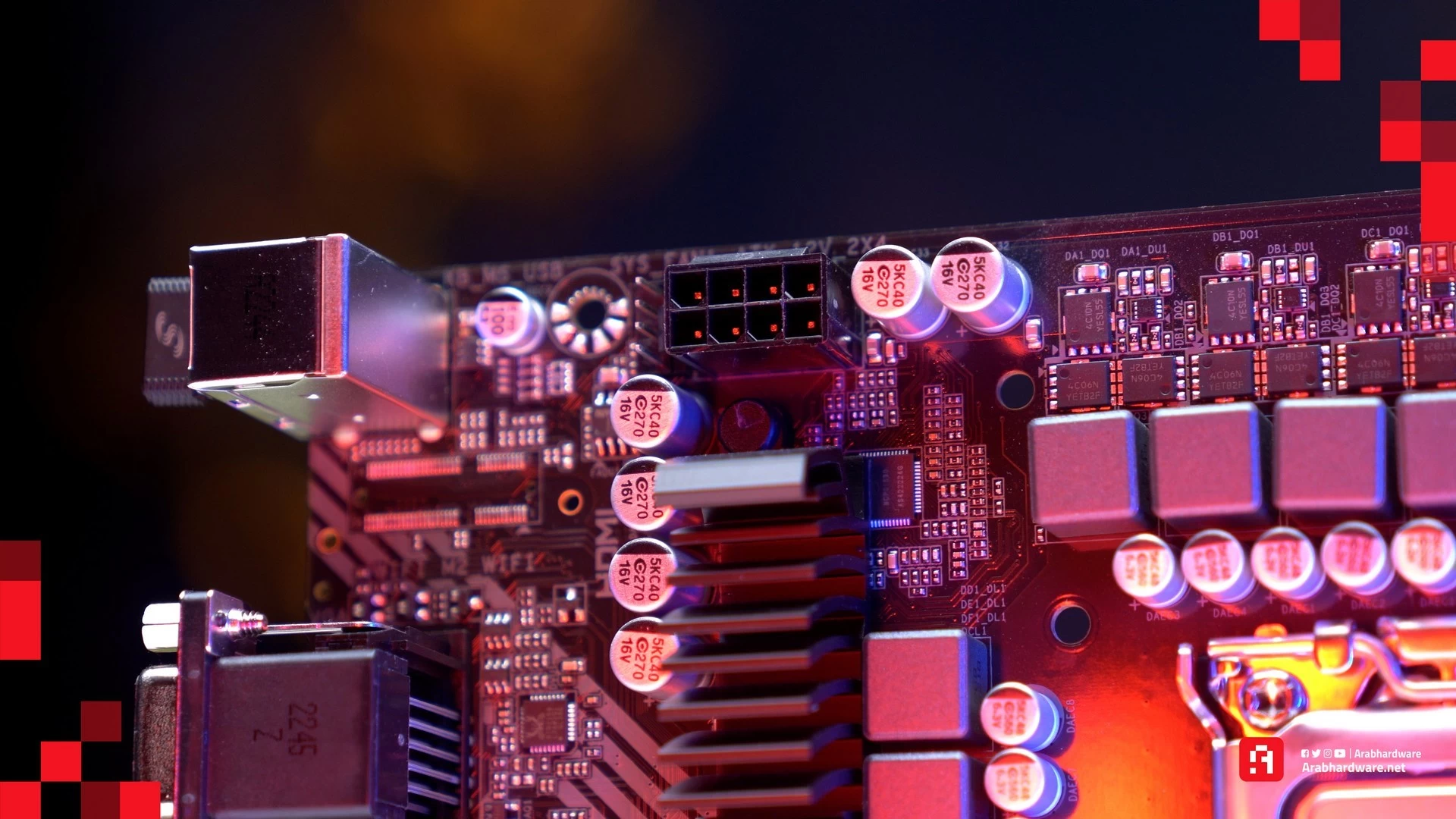

The power delivery solution for the board is a mid-power solution consisting of a 6 + 2 + 1 phase setup. Memory support is provided through four DDR4 slots. The board supports up to 128GB of RAM up to DDR4 5333 frequencies (overclocked).
Front Panel USB Connectors
The Gigabyte B760M DS3H AX DDR4 motherboard provides a good set of front panel connectors, providing one USB 3.2 Gen 1 header for the front panel, which in turn provides the ability to install two USB 3.2 Gen 1 Type-A ports on the front panel. However, it does not come with a front panel USB Type-C header.
Expansion Slots and Storage Options

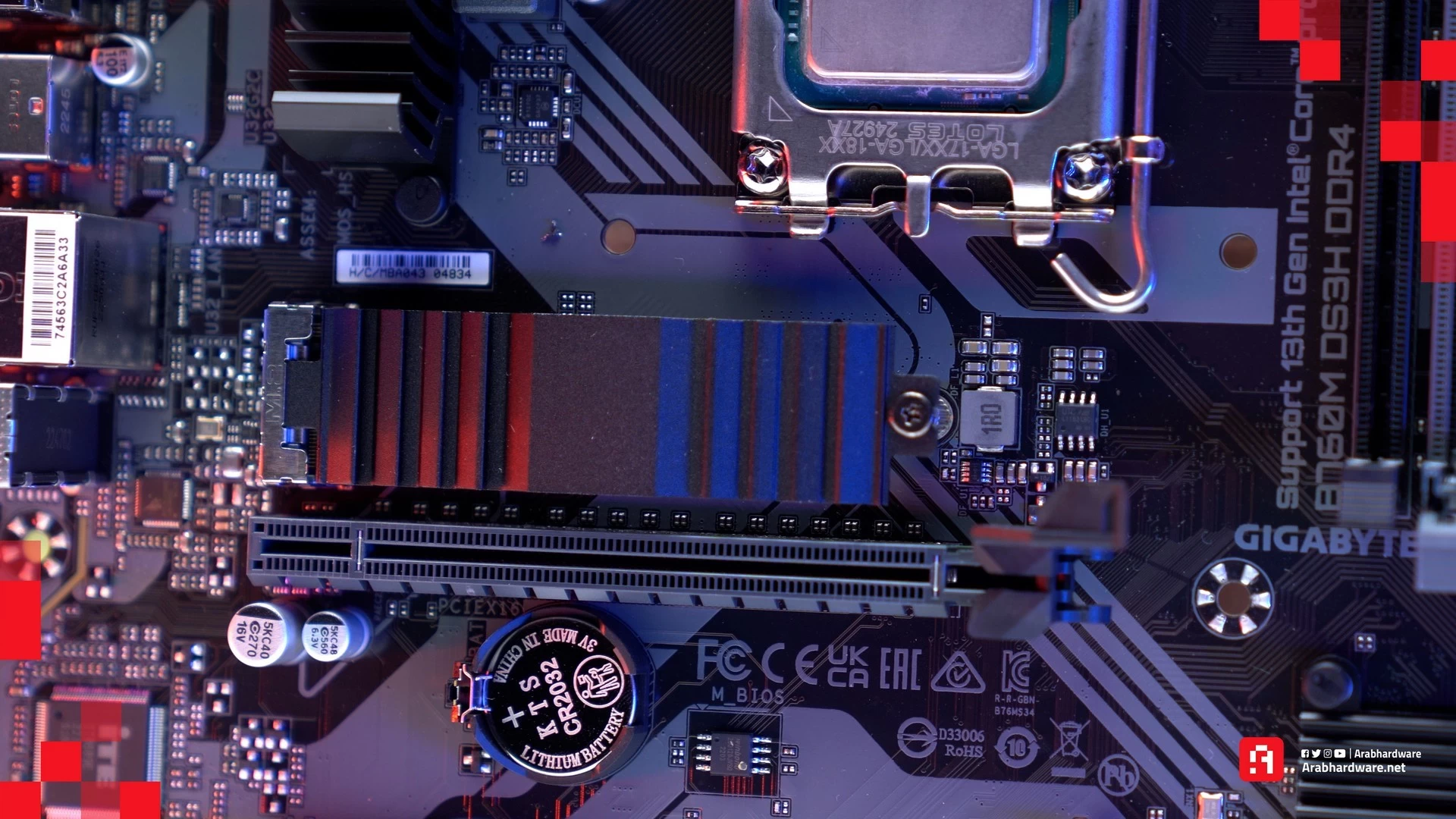

In terms of expansion slots, the B760M DS3H AX DDR4 motherboard comes with one PCIe 4.0 x16 slot made of plastic, featuring the EZ-Latch feature, essentially a handy solution to help maintain large graphics cards when removing them more easily and less painfully, especially in already operating computers (not in the building stage). Two PCIe 3.0 x1 slots are also included.
Audio and Internet Solution
As an economy-class motherboard, there are no surprises here knowing that Gigabyte included the Realtek ALC897 audio codec. The wired internet connection is the Realtek RTL8125BG which provides 2.5 Gigabit Ethernet support.
All B760M DS3H AX DDR4versions support WIFI 6E:
- Revision 1.0: AMD RZ608 WIFI 6E (80 MHz) + Bluetooth 5.2
- Revision 1.1: Intel AX210 WIFI 6E (160 MHz) + Bluetooth 5.3
- Revision 1.2: Intel AX211 WIFI 6E (160 MHz) + Bluetooth 5.3
- Revision 1.3: Realtek RTL8852CE WIFI 6E (160 MHz) + Bluetooth 5.3

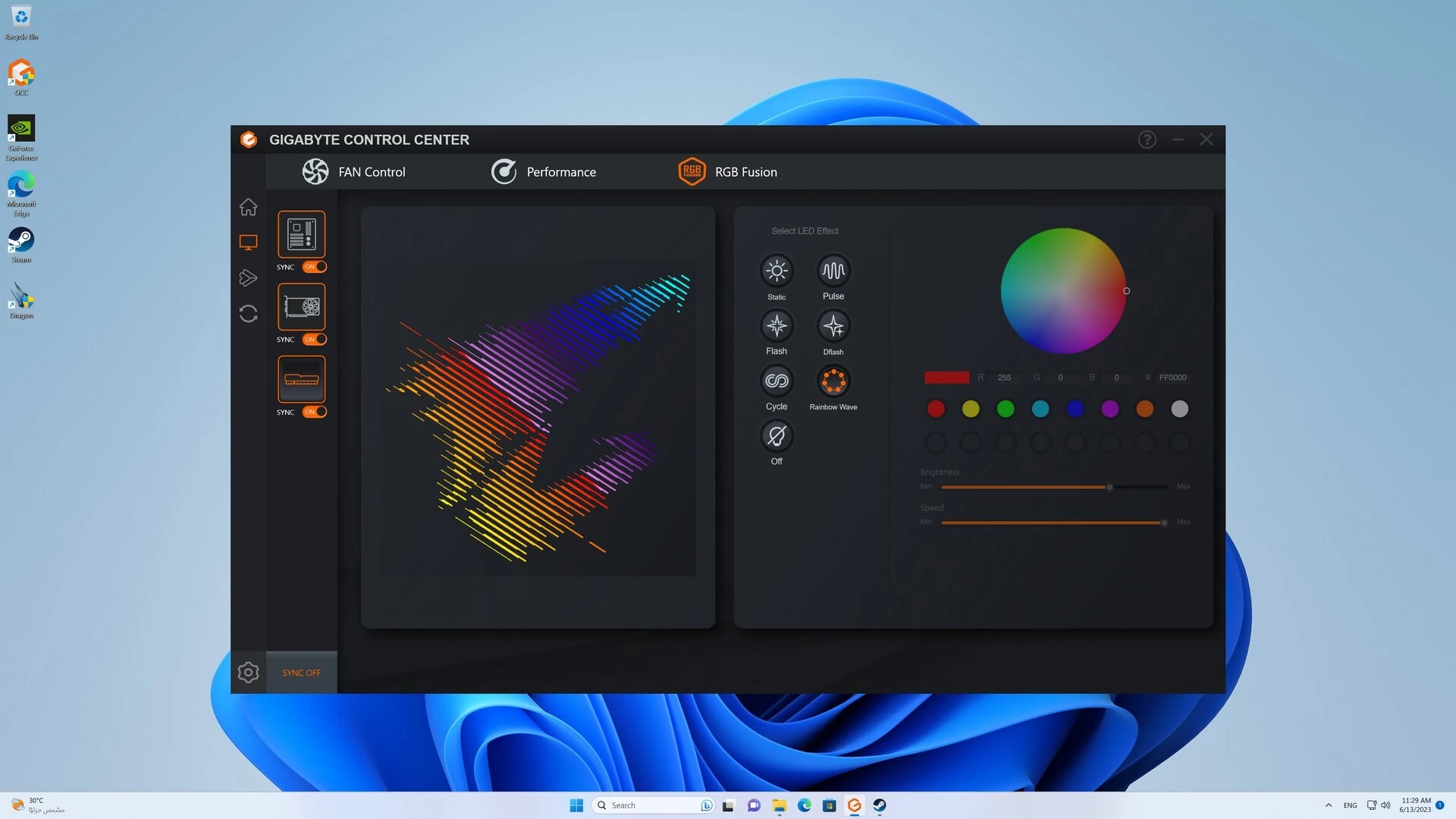

Fan and RGB Connectors
The B760M DS3H AX DDR4 model comes with four fan connectors: one CPU_FAN, and three SYS_FAN connectors. It also includes one controllable RGB header, in addition to a 12-volt RGB header.
Gigabyte B760M DS3H AX Motherboard Additional Features
The Gigabyte B760M DS3H AX motherboard provides additional features enhancing its overall functionality.
Q-Flash Plus Button

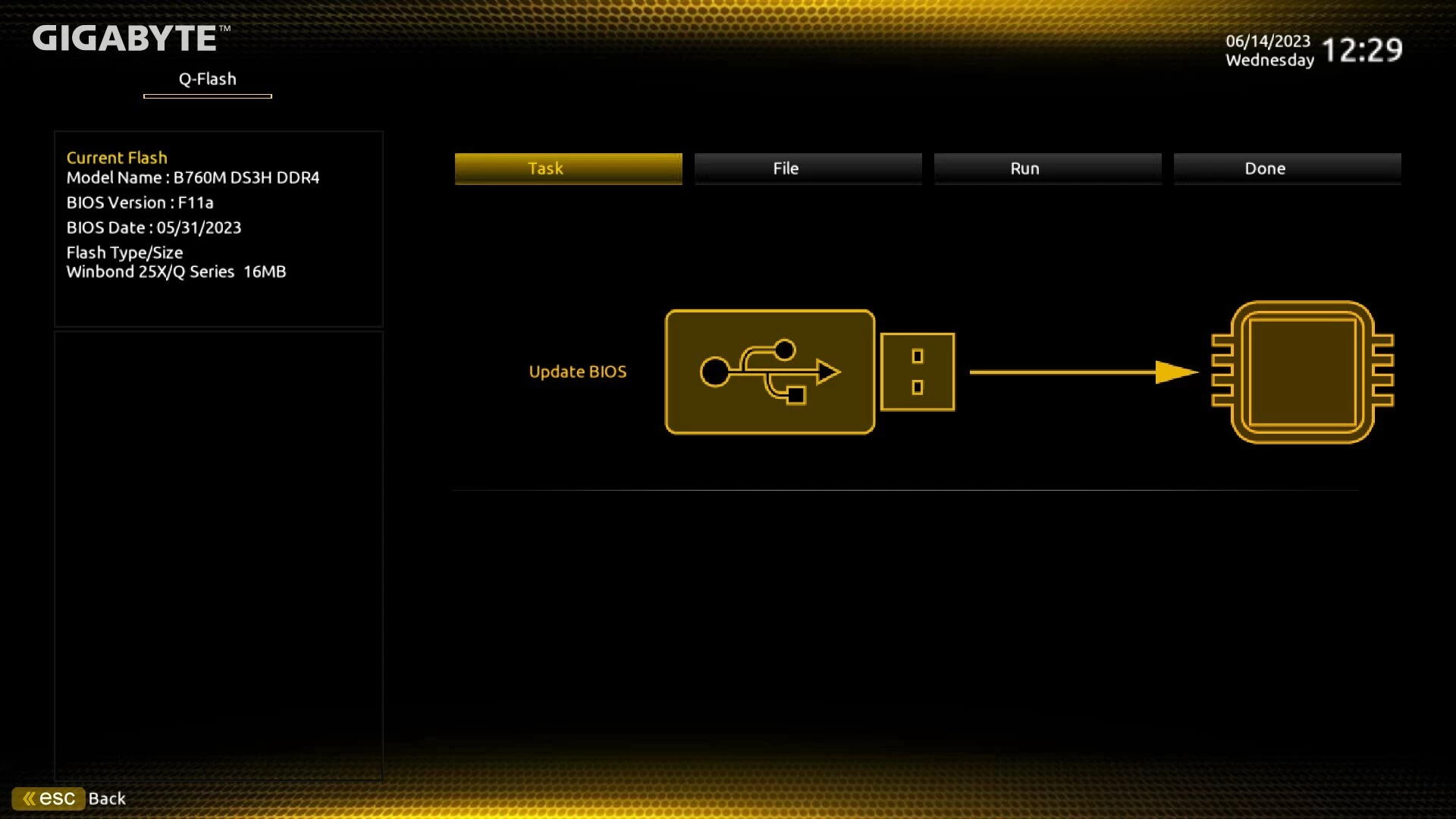

The motherboard has a Q-Flash Plus button located near the lower edge. This feature allows end users to update the motherboard’s BIOS without the need to install a processor, RAM, or even a graphics card.
Reset Button
To the right of the Q-Flash Plus button, there is a reset button, also known as a multi-function button by Gigabyte. This button can be reset within the BIOS to offer various functionalities. This includes working as a switch that can enable and disable the RGB devices present on the board.
Rear I/O Panel

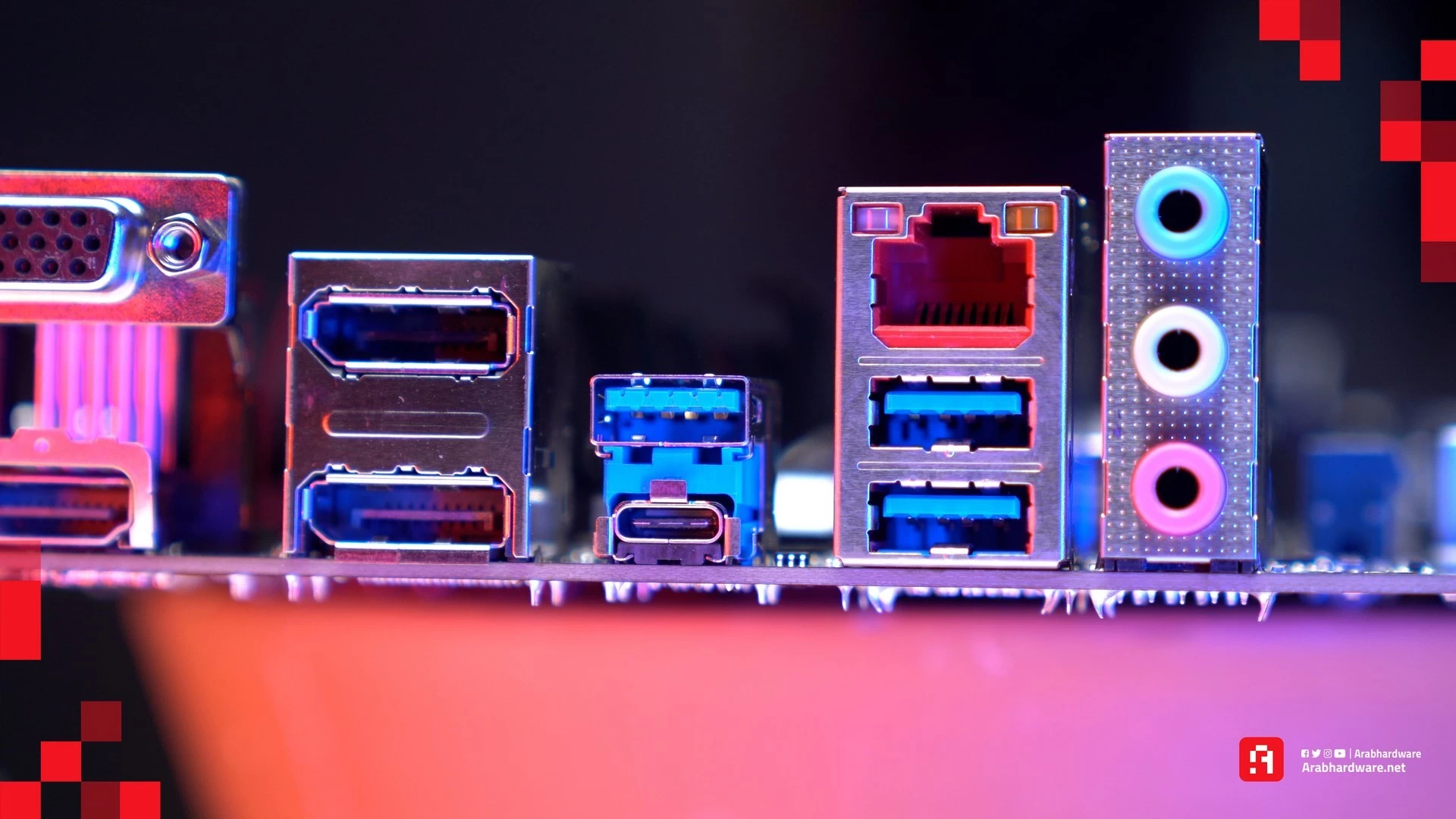

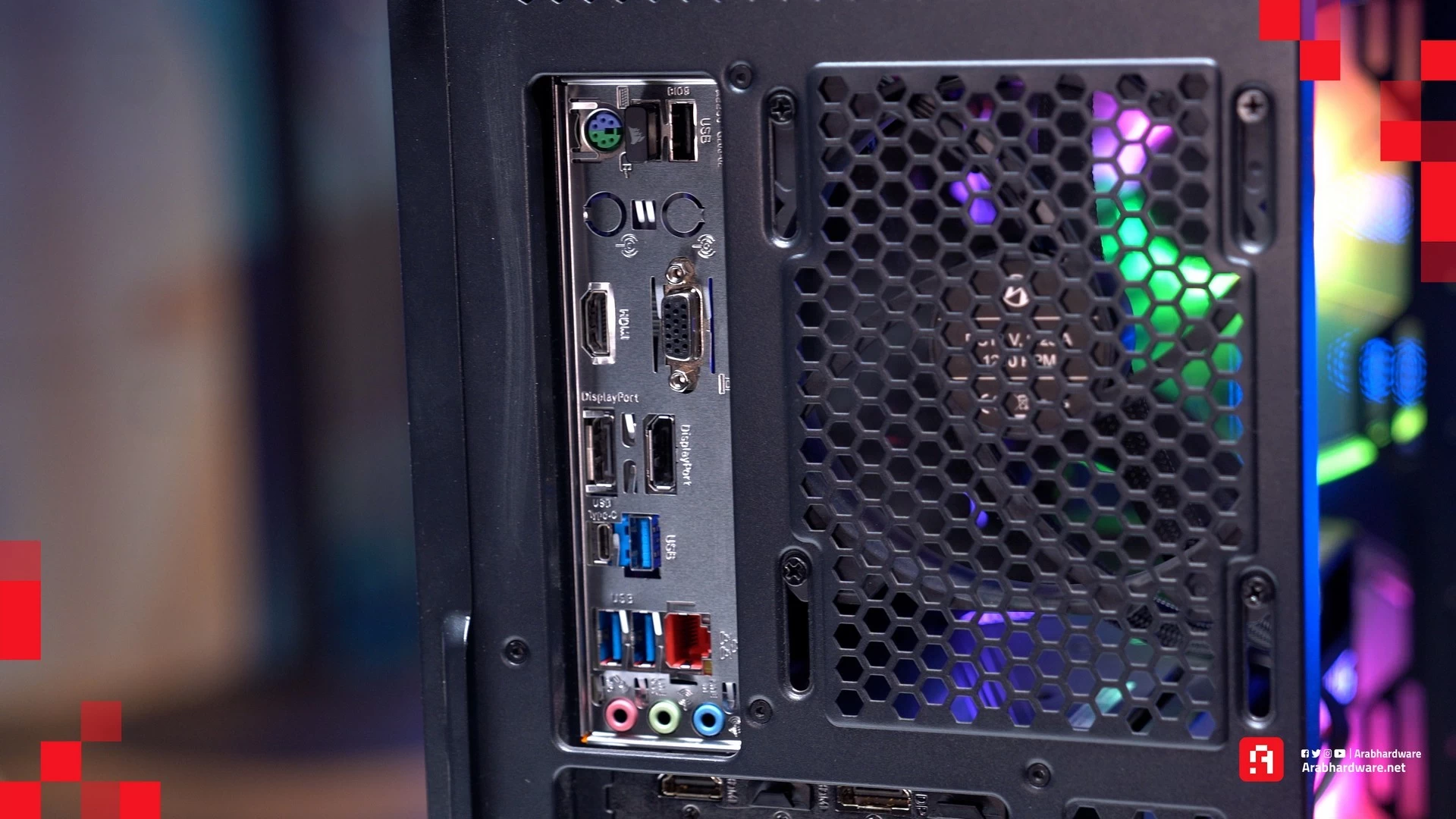

The B760M DS3H AX DDR4 motherboard includes the following ports on its rear input/output panel:
- Two USB 2.0 Type-A ports
- A PS/2 combo port
- WIFI antenna connectors
- An HDMI 2.0 connector (supports display output up to 4096×2160 @ 60 Hz)
- Two DisplayPort 1.2 connectors (supports display output up to 4096×2304 @ 60 Hz)
- Three USB 3.2 Gen 1 Type-A ports (5 Gbps speed)
- A USB 3.2 Gen 2 Type-C port (10 Gbps speed)
- A 2.5 Gigabit Ethernet port
- Audio jacks
Gigabyte B760M DS3H AX DDR4 Motherboard Performance Results
As with most motherboards, gaming and heavy software operation don’t present a significant performance difference. This means that this motherboard provides a balanced combination of price, aesthetics, and features, without neglecting performance.
The raw performance of motherboards doesn’t change your gaming or software experience as games primarily depend on the processor and graphics card. Even if a motherboard provides better frequencies and overclocking for these components, performance won’t differ significantly, regardless of whether the motherboard belongs to a higher or lower category.
When choosing a motherboard, the primary concern is its features and its ability to overclock the processor to achieve good numbers, which can extract the power of new graphics cards and processors.
Motherboard Performance Benchmarks

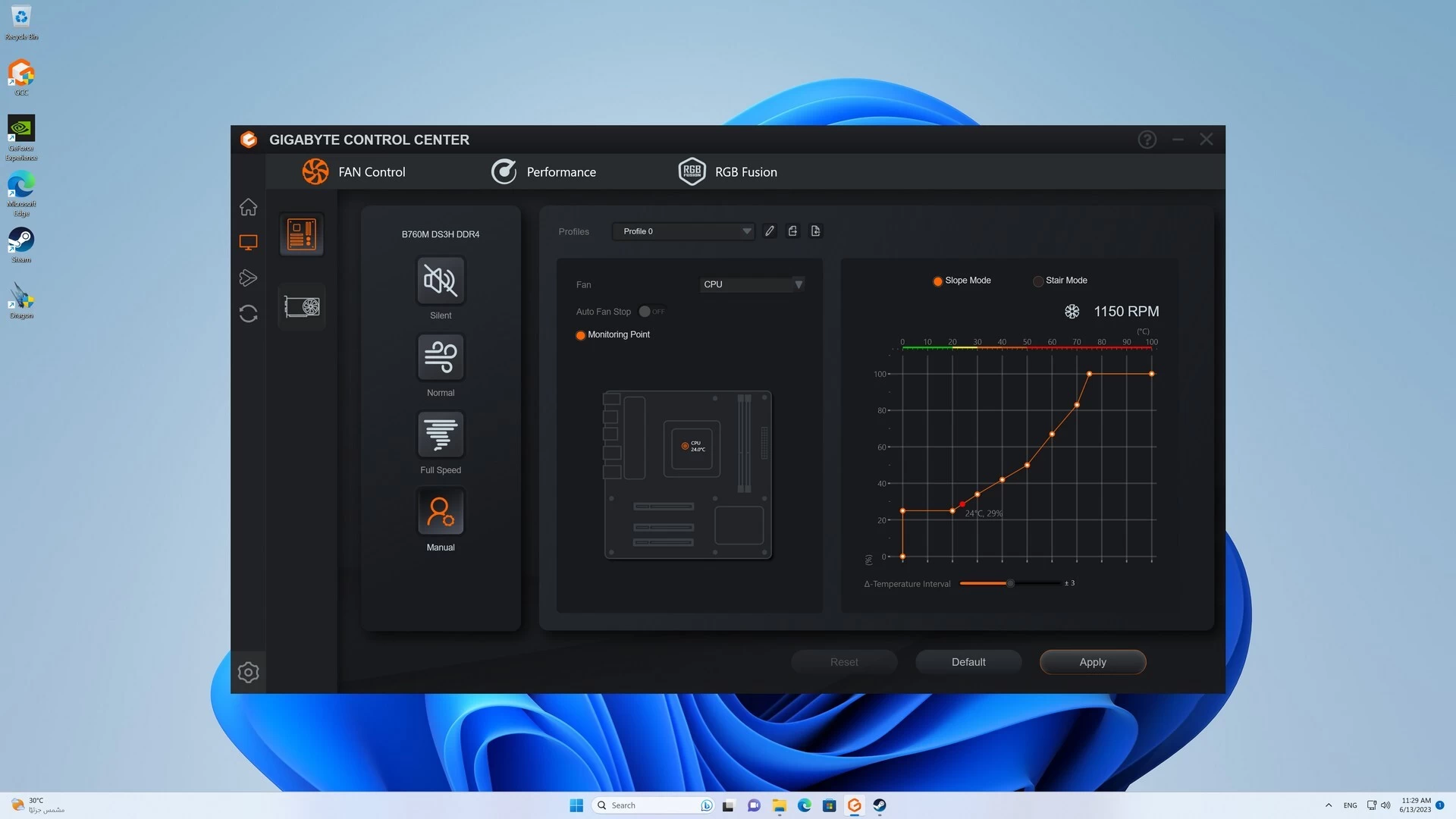

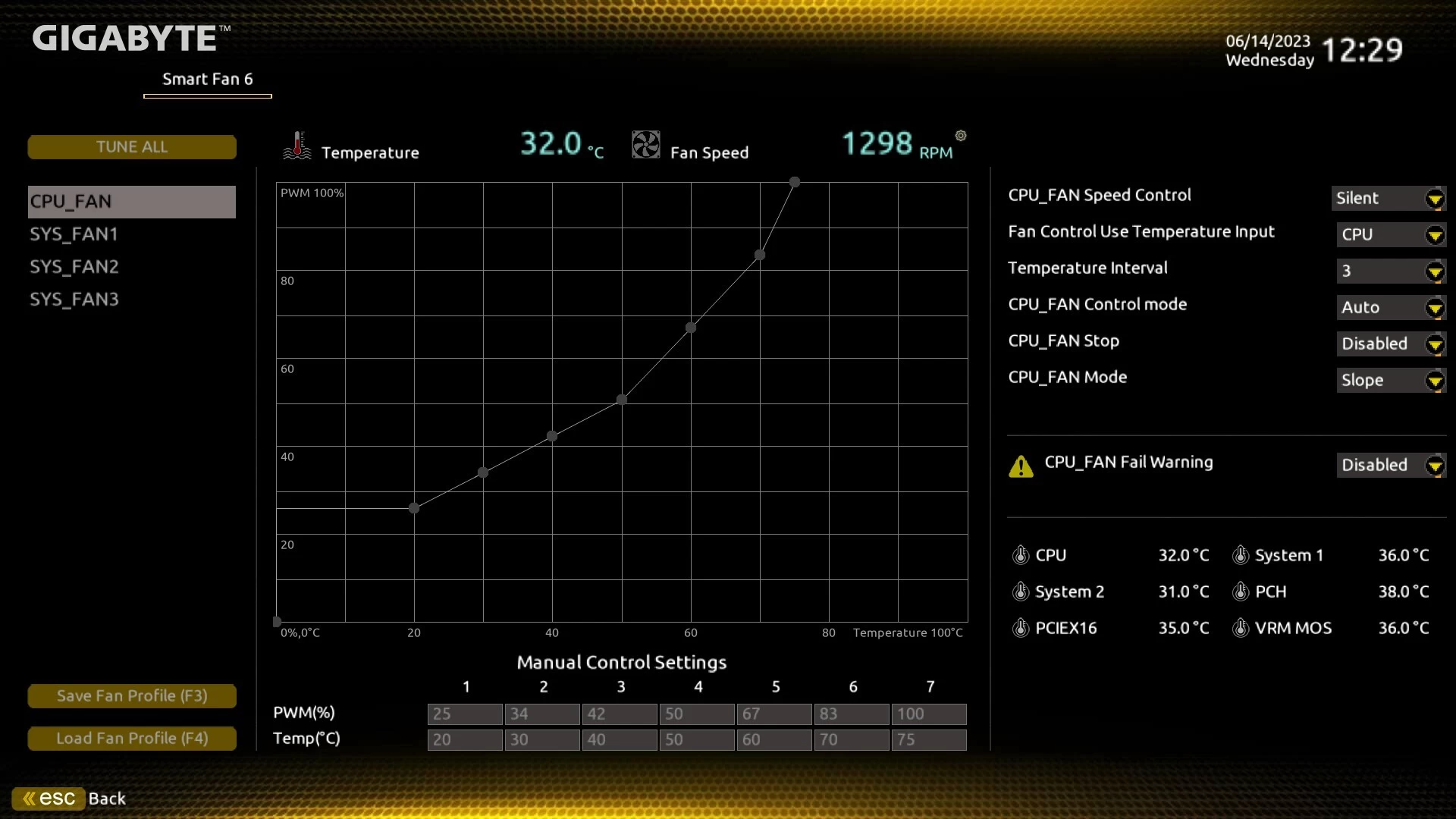

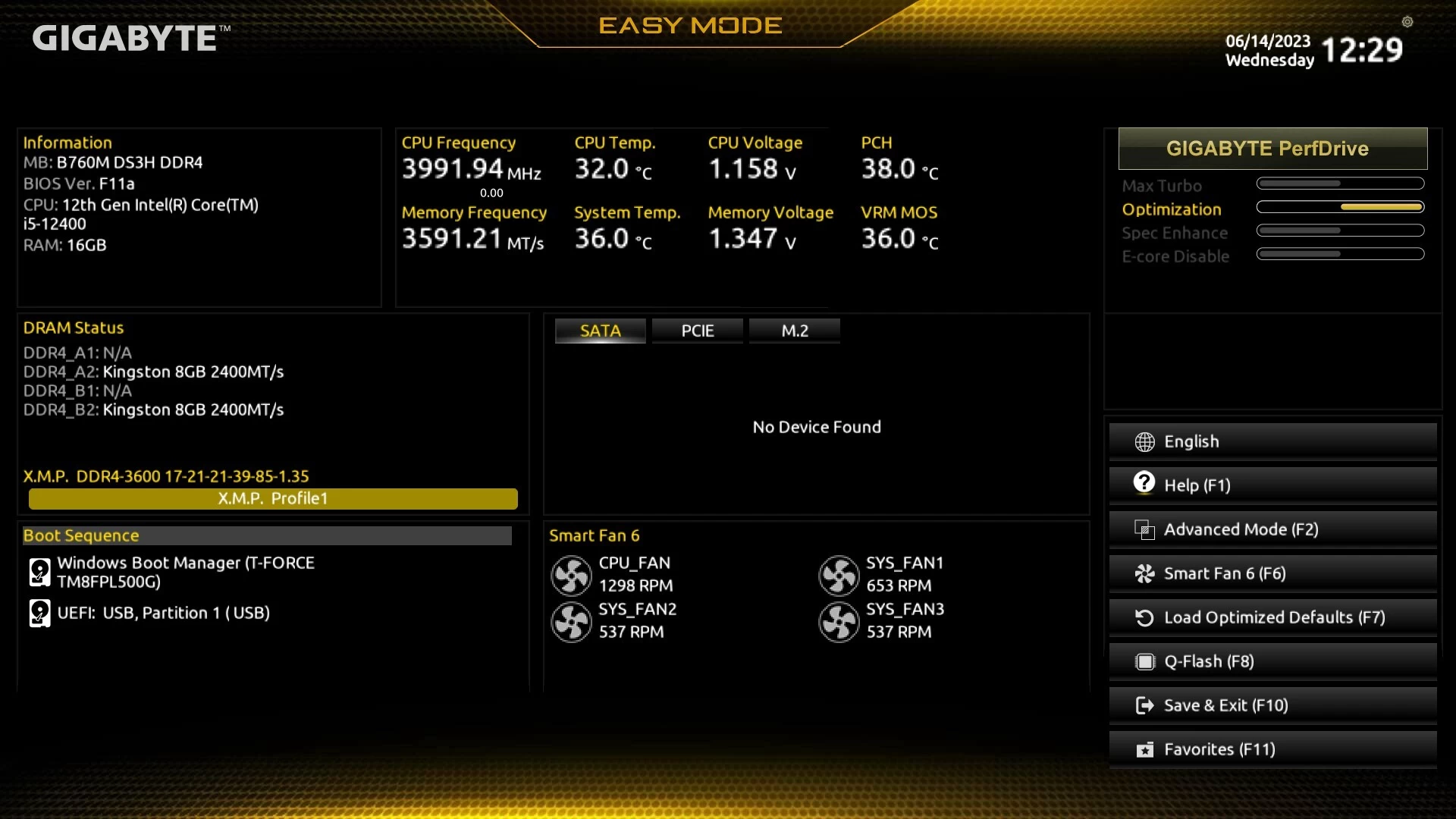

Typically, we began by checking the temperatures and frequencies at the standard and normal fan setting. The results were quite good, with a standard processor temperature around 32 degrees for the Core i5 12400, and a system temperature of about 31 degrees Celsius. Other essential components on the motherboard had similar temperatures.

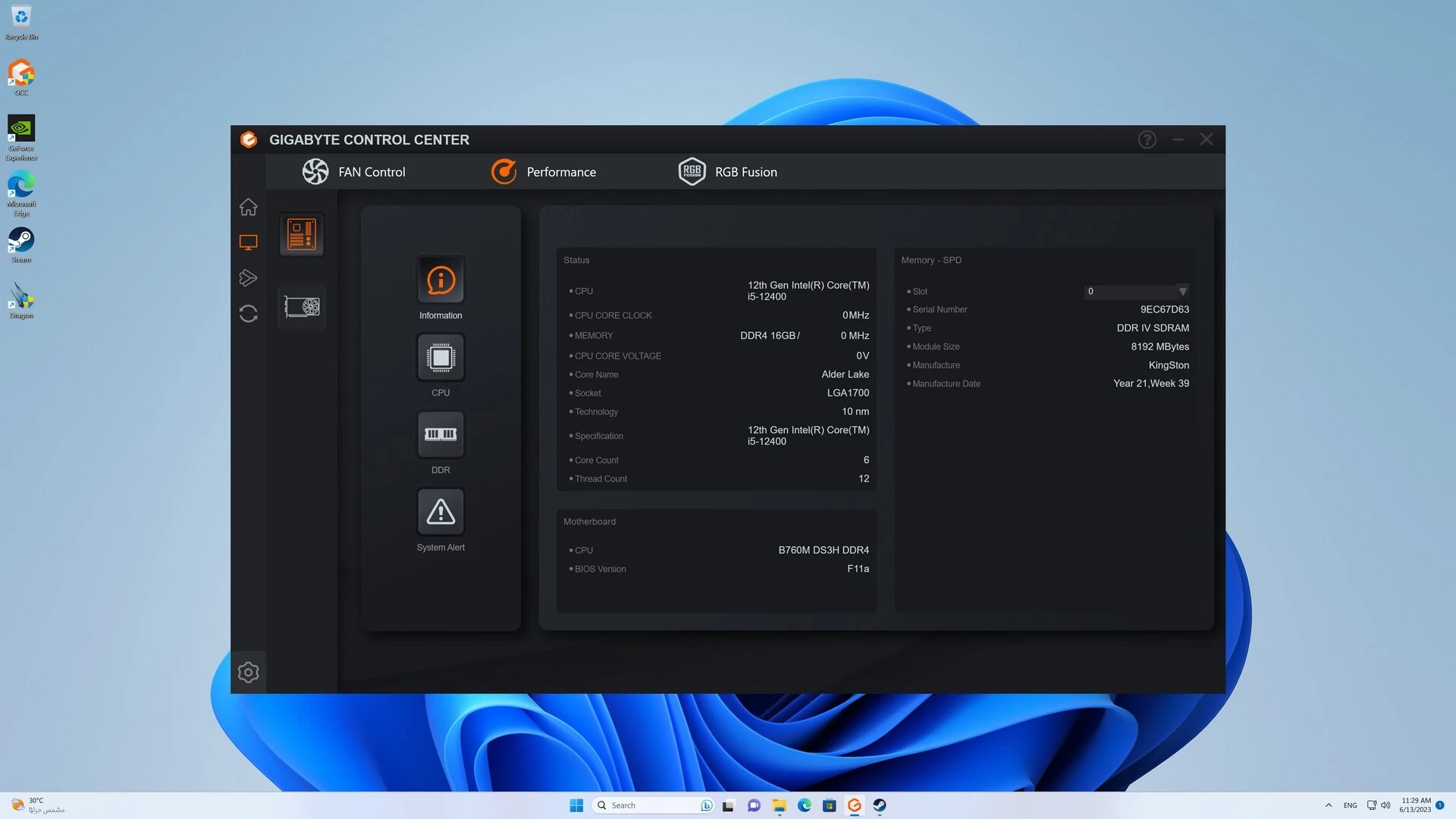

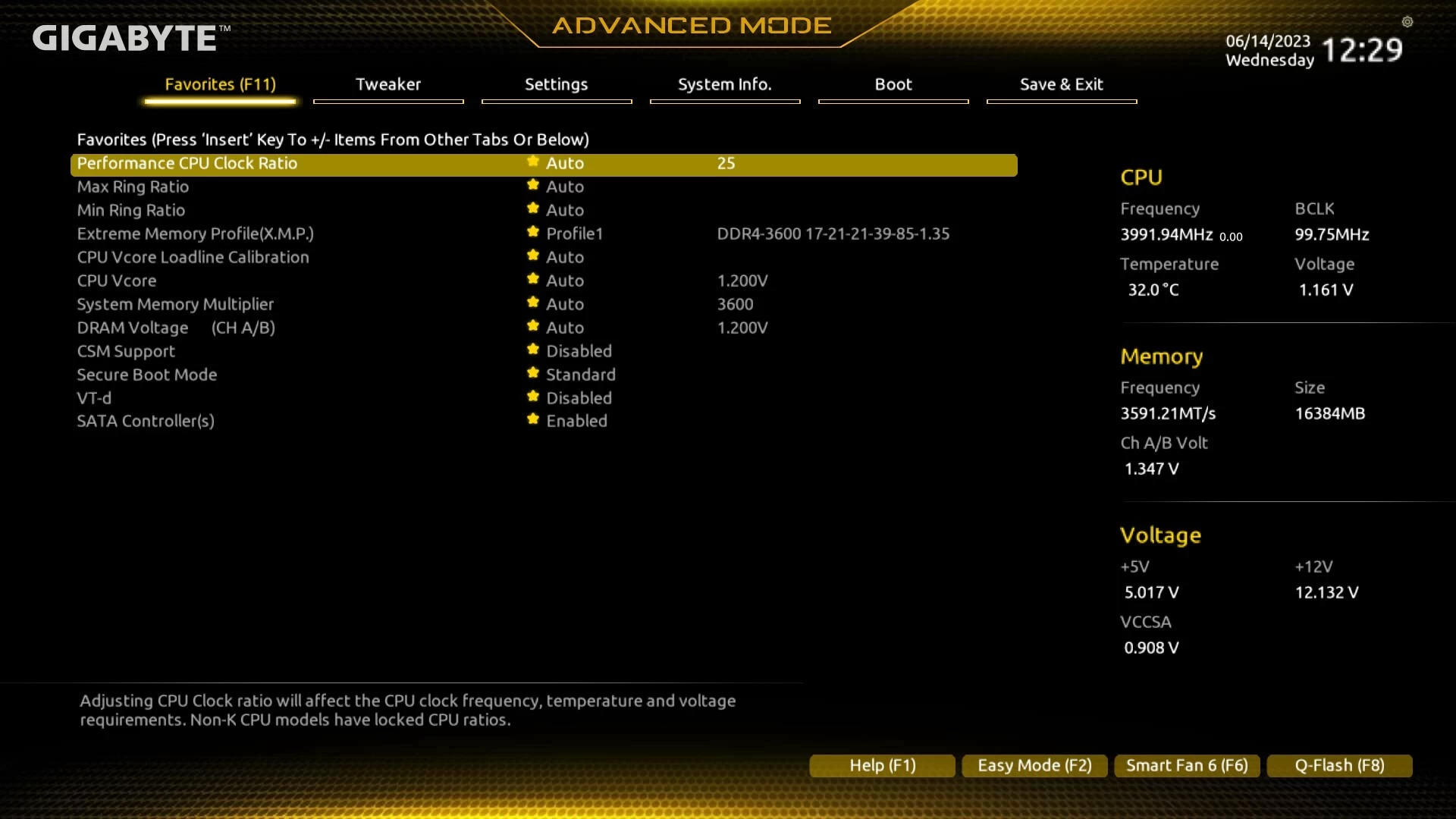

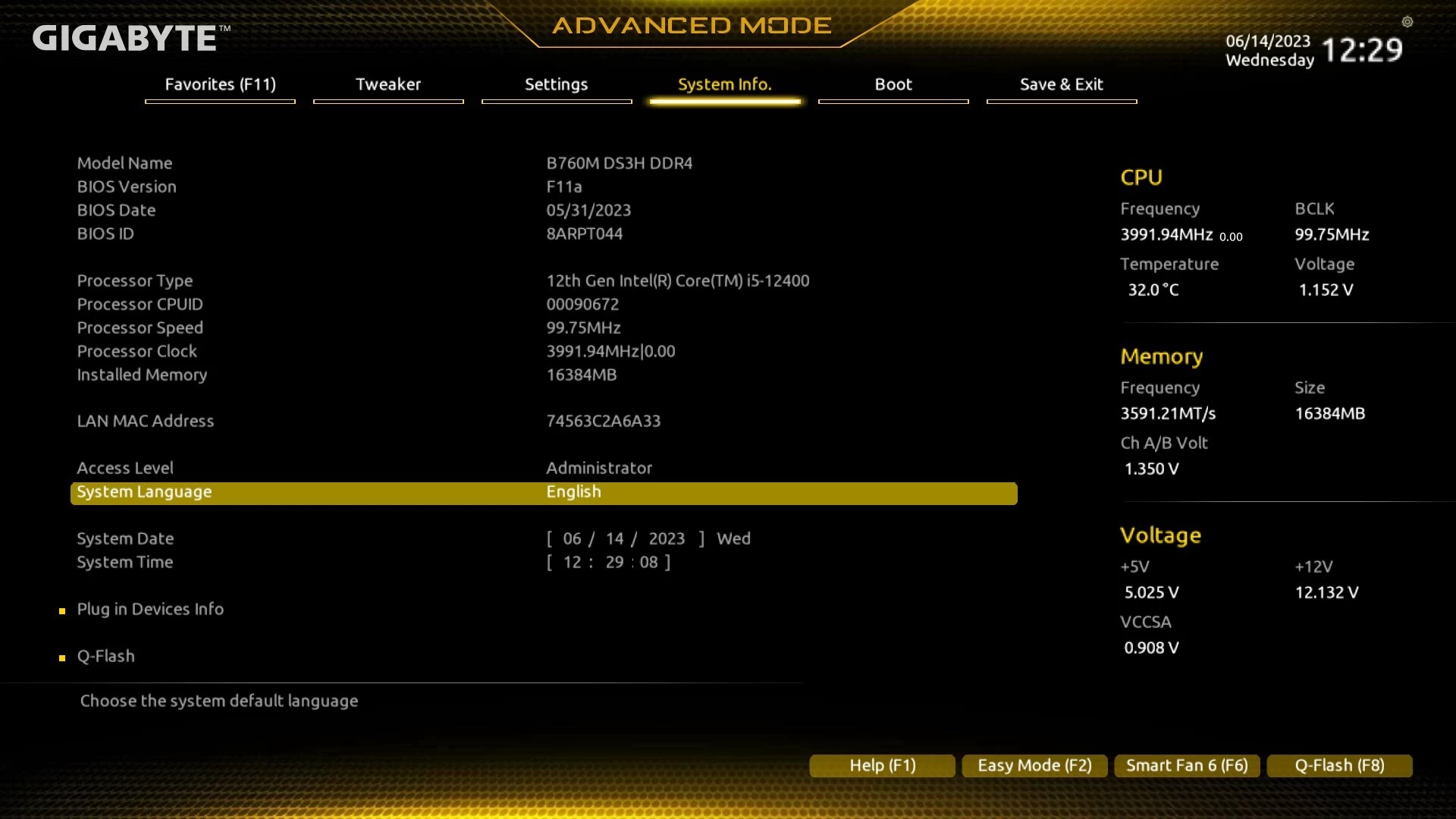

The memory was functioning at its original frequencies without any problems at 3591MHz, and the processor was working at its standard frequencies of 3991MHz without any issue, as shown in the pictures. These frequencies are, of course, with XMP 3.0 technology enabled.

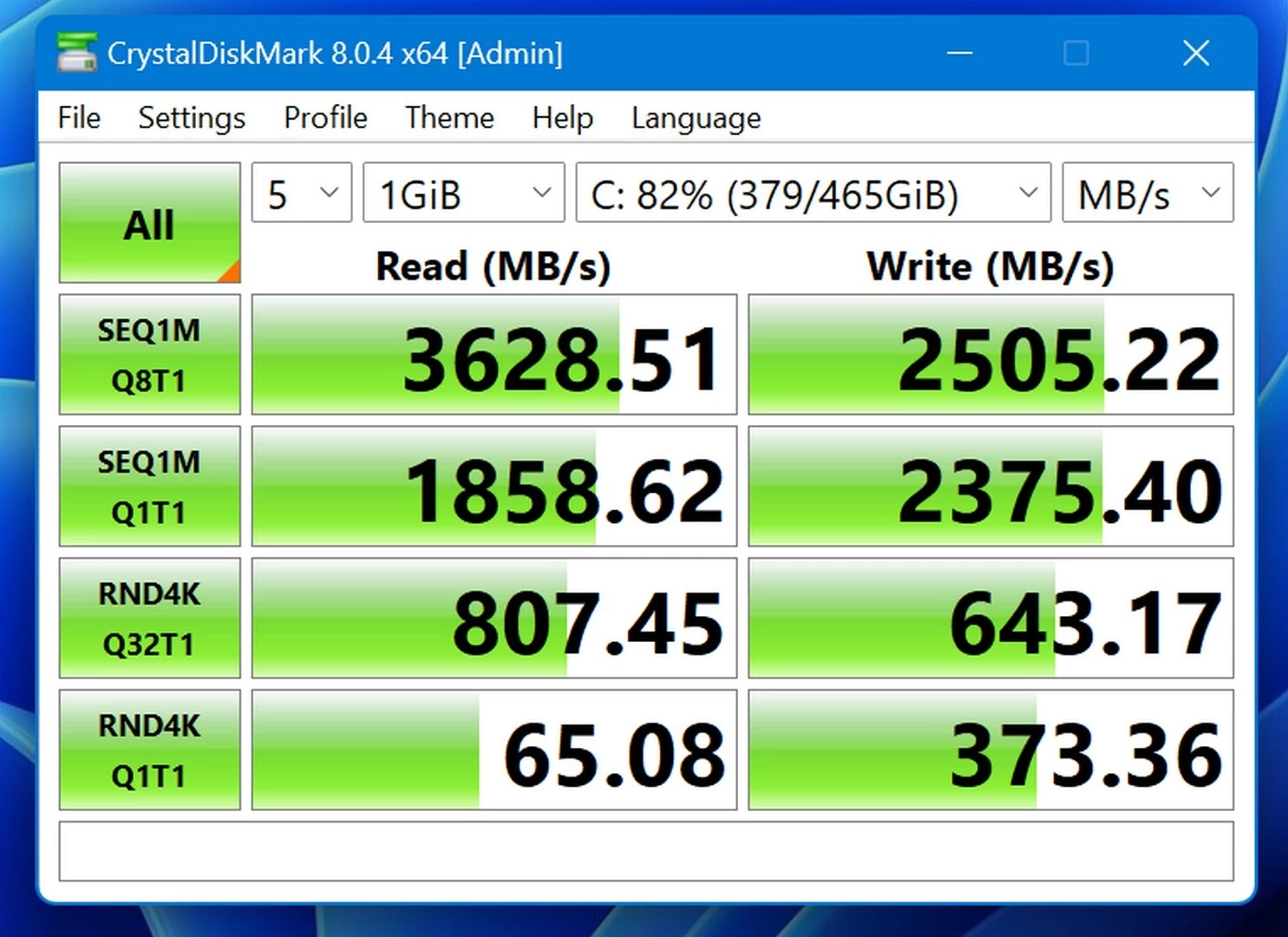

The storage unit was also operating at its base speed of 3600 for reading and 2500 for writing.
Final Verdict and Pricing on Gigabyte B760M DS3H AX DDR4 Motherboard
The Gigabyte B760M DS3H AX DDR4 motherboard provides an optimal 13th generation solution in Intel B760 chipset motherboards. It focuses on the right points needed by the budget-conscious category. Even at its price, Gigabyte managed to include features like 2.5 Gigabit Ethernet and WIFI 6E support.
Although it does not offer much in terms of aesthetics and lighting, this is expected with this category of products. This motherboard is perfectly suitable for business PCs and perhaps even gaming PCs that focus only on performance.
However, it’s worth noting that the B760M DS3H AX DDR4 is virtually identical to its to keep things tidy. Click to see them.
